1.L x W: 2440x686mm
2.Thickness: 0.3-0.8mm
LAND make wire mesh export easier

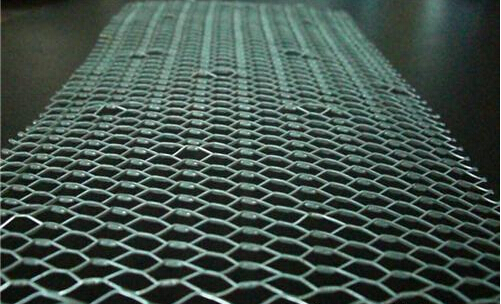

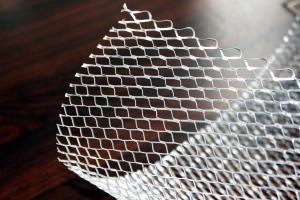

Wall plaster mesh(expanded wall plaster mesh, plaster wall mesh)
This kind of expanded metals are widely used in many plaster project, such as high-rise construction, civic building, workshop and so on. And it has the advantage of strong adhesive force, crack resistance, shakeproof ,etc Generally, the common specifications are as follows:
Materials: cold roll steel; galvanized steel plate;
Hole Pattern: Diamond mesh
Specifications: mesh thickness: 0.4mm-0.8mm; Hole size: 8x16mm,10x20mm,12x25mm
Use as a plaster base and reinforcement for all types of walls, ceilings and fireproofing of steel beam, and columns. Easy to cut and form to ornamental plaster work. Provides ample keying for scratch coat and is commonly used for plaster machine application.
Size(length ×width) Thickness(mm) Weight(kg)
2440mm×686mm 0.30 1.30
2440mm×686mm 0.35 1.41
2440mm×686mm 0.40 1.61
2440mm×686mm 0.50 2.01
Installation:
1. Fix the Screen:
If on the wood bracket, please use the nail with length of 11 gauges 1-1/2', and 7/16';
If on overwritten wood bracket, please use 3/4'round head nail,14 gauge, 1.5'end, etc;If on metal bracket, please add round head screw by self drilling or electric motor and we should obey the operating instructions.
2. Fix the Interval
The largest interval is 6'(horizontally or vertically).
Note: Round head nails should not be used in the ceiling.
3. Span Limitation
Every decorating material has span limitation, that is, the maximum distance among brackets. If without covering board, the maximum distance among brackets is 16'. The maximum distance could be 24'.
Note: There should be 1/4' between mesh board and vertical bracket or the firm surface.
4. To Trim into Suitable Sizes
We can trim by standard metal shear. Or we can use fretsaw with metal blades to trim the mesh sheet.
5. To Tie the Wire
We should bind wire at the side, end and joint of the mesh sheet 9' from the center. This is only used when covering with veneer.
